20KM Long Distance 5.8G 300Mbps Point To Point Outdoor High Power Wifi Bridge
Specification
| Product Name | 5.8G high-power long-distance wireless bridge |
| Product model | CPE2000L |

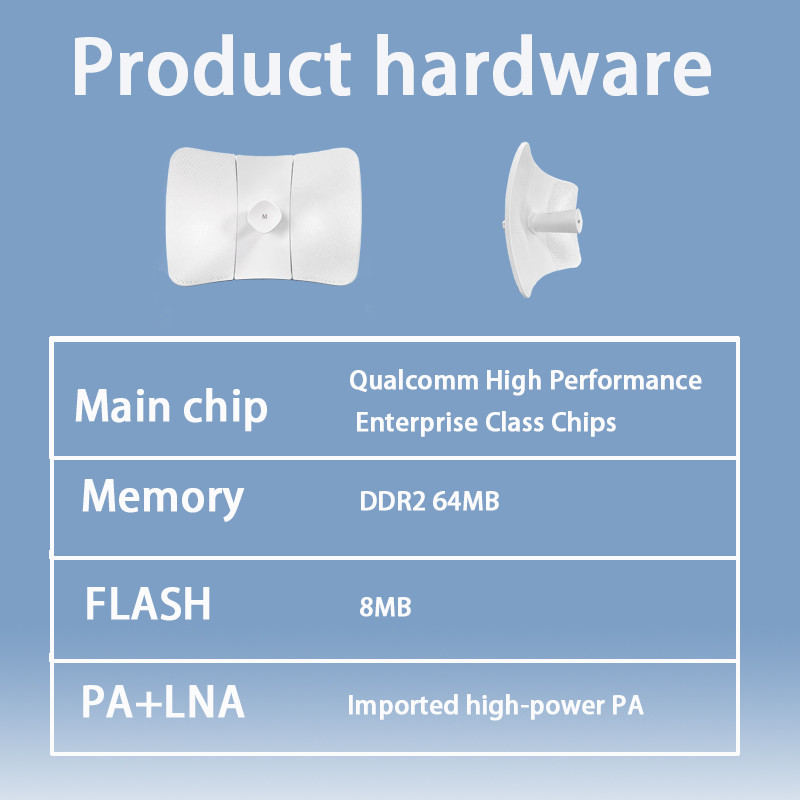

| Hardware specifications |
| hardware system | Main chip | Qualcomm High Performance Enterprise Class Chips |
| Memory | DDR2 64MB |
| FLASH | 8MB |
| PA+LNA | Imported high-power PA |
| Wireless parameters | Protocol standards | IEEE 802.11a/802.11n |
| Working frequency band | 5.8G:5180MHz ~5825MHz |
| Wireless rate | 5.8G:300Mbps(2*2MIMO) |
| Transmitting power | Max 30dBm |
| Physical interface | network interface | 1*10/100Mbps LAN/WAN RJ45 Ethernet port (supports 24V PoE power supply) |
| Hardware buttons | 1 RESET button |
| Antenna type | Antenna type | 26dBi Dual Polarized Parabolic Mesh Antenna |
| Indicator light | LED indicator light | Power, WAN/LAN, WIFI, and 3 signal lights in sequence |
| Power supply/consumption | Power supply method | 24V PoE power supply |
| Product accessories | main engine | 5.8G high-power long-distance wireless bridge host * 1 |
| antenna | One set of 5.8G parabolic antenna |
| Fixed base | One set of fixed base |
| ac adapter | 24V 0.5A PoE power supply |
| other | Quick installation guide * 1, warranty card * 1, certificate of conformity * 1, stainless steel ring * 1 |
| Appearance/Packaging | Appearance color | white |
| Product size | 400mm*280mm*235mm(L*W*H) |
| Packaging size | 315mm*200mm*165mm(L*W*H) |
| weight | less than 1kg |
| other | The optimal power supply distance for PoE network cables | Within 65 meters (over Category 5 network cable or above) |
| Bridging distance | 0-20 KM |
| IPC capacity | 20 routes, no lag, no delay |
| Installation method | Pole installation, wall mounted installation, bracket installation |
| Protection level | IP65, 2KV lightning protection |
Details Images
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 1-3 working days, mass production time needs 3-5 weeks based on order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. Do your products meet our standards?
A: Yes, almost all our products have CE,ROHS,FCC,etc.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Then we arrange the production.
Q6. How do you ship the goods and how long does it take to arrive?
A: We usually ship by Ali-Logistics, DHL, UPS, Fedex, TNT, EMS, SF Express or your designated forwarder. It usually takes 3-7 days to arrive. Airline and sea shipping also optional.
Q7. What is your payment term?
We have Ali- pay, T/T, Visa,Western Union payment terms options, you can choose the one which is convenient or effective for you !
Q8. Can you customized logo and packaging?
A: Yes, OEM/ODM are acceptable. Our design team will help you design as your requirement.
